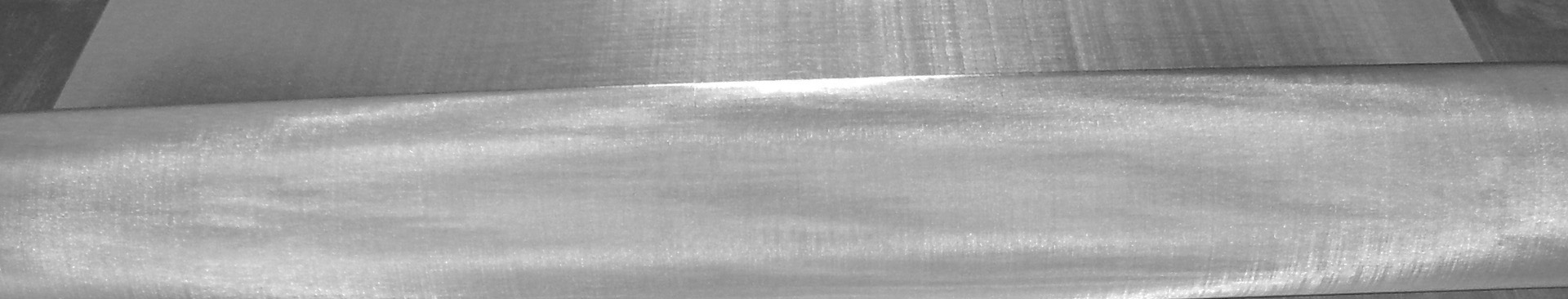

Plain Weave / Dutch Plain Weave Stainless Steel Wire Cloth

Plain Weave Stainless Steel Wire Mesh Specification
Mesh/Inch	Wire Diameter			Opening		Open Area
	SWG No.	MM	INCH	MM	INCH	%
1	10	3.150	0.1240	22.250	0.8760	77%
2	16	1.600	0.0630	11.100	0.4370	76%
2	14	2.000	0.0787	10.700	0.4213	71%
2	12	2.500	0.0984	10.200	0.4016	65%
3	16	1.600	0.0630	6.870	0.2705	66%
3	14	2.000	0.0787	6.470	0.2547	58%
4	18	1.200	0.0472	5.150	0.2028	66%
4	16	1.600	0.0630	4.750	0.1870	56%
5	16	1.600	0.0630	3.480	0.1370	46%
6	20	0.900	0.0354	3.330	0.1311	60%
6	18	1.200	0.0472	3.030	0.1193	51%
8	22	0.710	0.0280	2.470	0.0972	60%
8	20	0.900	0.0354	2.280	0.0898	51%
8	18	1.200	0.0472	1.970	0.0776	38%
10	24	0.560	0.0220	1.980	0.0780	61%
10	26	0.450	0.0177	2.090	0.0823	68%
10	20	0.900	0.0354	1.640	0.0646	41%
12	26	0.450	0.0177	1.670	0.0657	62%
12	24	0.560	0.0220	1.560	0.0614	54%
12	22	0.710	0.0280	1.410	0.0555	44%
14	24	0.560	0.0220	1.250	0.0492	48%
16	28	0.350	0.0138	1.240	0.0488	61%
16	26	0.450	0.0177	1.140	0.0449	51%
16	24	0.560	0.0220	1.030	0.0406	41%
20	28	0.350	0.0138	0.920	0.0362	52%
20	26	0.450	0.0177	0.820	0.0323	42%
24	30	0.300	0.0118	0.758	0.0298	51%
30	32	0.280	0.0110	0.567	0.0223	45%
30	30	0.300	0.0118	0.547	0.0215	42%
40	34	0.220	0.0087	0.415	0.0163	43%
50	36.5	0.190	0.0075	0.318	0.0125	39%
50	36	0.200	0.0079	0.308	0.0121	37%
60	37.5	0.160	0.0063	0.263	0.0104	39%
80	39	0.125	0.0049	0.193	0.0076	37%
100	42	0.100	0.0039	0.154	0.0061	37%
120	44	0.080	0.0031	0.132	0.0052	39%
150	45.5	0.065	0.0026	0.104	0.0041	38%
180	47	0.050	0.0020	0.019	0.0007	8%
200	47	0.050	0.0020	0.077	0.0030	37%
250	48	0.040	0.0016	0.062	0.0024	37%
300	48	0.040	0.0016	0.045	0.0018	84%
325	48.5	0.035	0.0014	0.043	0.0017	30%
400	49	0.030	0.0012	0.034	0.0013	28%
500	50	0.025	0.0010	0.026	0.0010	26%

Dutch Plain Weave Stainless Steel Wire Mesh Specification
Mesh		Wire Diameter				Micron Retention		Breaking Load		Open Area
Warp	Weft	Warp (inch)	Warp (mm)	Weft (inch)	Weft (mm)	Abs. μm	nom.μm	Warp N	Weft N	%
8	85	0.3600	0.014	0.3300	0.013	300-320	310	400	2100	66%
10	56	0.7100	0.028	0.5000	0.020	300-320	305	580	1430	58%
10	70	0.6000	0.024	0.4000	0.016	310-330	300	550	1410	61%
10	88	0.5000	0.020	0.3300	0.013	270-295	265	630	1600	63%
12	64	0.6000	0.024	0.4200	0.017	260-280	250	750	2620	57%
12	95	0.5000	0.020	0.3000	0.012	220-240	220	330	1440	63%
14	88	0.5000	0.020	0.3200	0.013	255-275	250	640	1650	48%
14	110	0.3800	0.015	0.2500	0.010	220-238	200	390	1500	62%
16	80	0.4300	0.017	0.3400	0.013	210-230	260	500	1420	57%
16	120	0.3600	0.014	0.2400	0.009	180-198	150	280	1320	62%
20	150	0.2500	0.010	0.1800	0.007	155-165	120	260	1100	63%
24	110	0.3600	0.014	0.2500	0.010	115-128	110	930	1600	49%
24	110	0.3200	0.013	0.2400	0.009	110-125	105	930	1600	49%
30	150	0.2200	0.009	0.1750	0.007	90-105	90	420	870	60%
40	200	0.1800	0.007	0.1400	0.006	70-80	70	320	730	59%
50	250	0.1400	0.006	0.1120	0.004	52-57	55	310	640	61%
50	280	0.1400	0.006	0.1000	0.004	50-55	50	310	680	61%
80	300	0.1250	0.005	0.0900	0.004	45-50	45	330	460	51%
80	400	0.1250	0.005	0.0710	0.003	40-45	40	310	430	55%
